What is hot chamber die casting?
Hot chamber die casting is a manufacturing method for low melting point metals (such as zinc, lead) casting products. The melted metal is injected into the die casting mold under high pressure, where it quickly solidifies into a suitable shape and is then discharged, completing the die casting process. Then perform deburring, drilling, tapping, and turning on the die-casting parts. After processing, various surface treatments such as painting, polishing, electroplating, etc. can be carried out. The products produced by hot chamber die casting have consistent, fast, and high-precision characteristics. (Cold chamber die casting is an additional die casting method with a similar process. Read more ...)
Advantages & Disadvantages Of Hot Chamber Die-Casting
What Are The Advantages Of Hot Chamber Die-Casting?
Hot chamber die casting is a metal casting process that involves injecting molten metal into a mold under high pressure. This method has several advantages, making it a popular choice for certain applications. Here are some of the key advantages of hot chamber die casting:
1. High Production Rates:
Hot chamber die casting is known for its high production efficiency and rapid cycle times. The molten metal is readily available in the machine, allowing for quick and continuous production.
2. Reduced Cycle Time:
Since the metal is already melted within the machine, there is no need to transfer molten metal from a separate furnace. This reduces the overall cycle time, making hot chamber die casting a time-efficient process.
3. Cost-Effective for High-Volume Production:
The high production rates and reduced cycle times make hot chamber die casting cost-effective for large-scale production runs. It is particularly suitable for producing a large number of identical parts.
4. Complex Geometries and Thin Walls:
Hot chamber die casting is capable of producing intricate and complex shapes with high precision. This makes it suitable for manufacturing components with thin walls, fine details, and complex geometries.
5. Improved Surface Finish:
The process often results in parts with a smooth surface finish, reducing the need for additional finishing operations. This is especially beneficial for applications where aesthetics or surface quality is crucial.
6. Better Mechanical Properties:
Hot chamber die casting can produce parts with improved mechanical properties compared to other casting methods. The high pressure used in the process helps in achieving good density and strength in the castings.
7. Reduced Scrap and Material Waste:
The precision of hot chamber die casting and the ability to recycle excess material contribute to lower scrap rates and minimal material wastage, enhancing overall cost-effectiveness.
8. Automated Production:
Hot chamber die casting machines can be easily automated, leading to consistent quality and reduced labor costs. Automation also contributes to increased safety by minimizing human involvement in the high-pressure casting process.
10. Alloy Versatility:
Hot chamber die casting is compatible with a wide range of alloys, including Zinc, Lead, and Tin alloys. This versatility allows manufacturers to choose materials based on the specific requirements of the application.
11. Environmental Considerations:
The closed-loop system of hot chamber die casting, where the molten metal is contained within the machine, contributes to a cleaner and more environmentally friendly process compared to some other casting methods.
Despite these advantages, it's important to note that hot chamber die casting may not be suitable for all applications, especially those requiring higher melting point metals or materials with specific properties that cannot be achieved through this process.
For more information about hot chamber die casting or hot chamber die casting machines, you can email us : cnkylt@aliyun.com to get a FREE quotation for your Zinc/Zamak 3&5 die casting project.
What Are The Disadvantages Of Hot Chamber Die-Casting?
While hot chamber die casting has its advantages, it also comes with certain disadvantages. Here are some of the drawbacks associated with hot chamber die casting:
1. Limited to Low-Melting-Point Alloys:
Hot chamber die casting is best suited for alloys with low melting points, such as zinc, tin, and lead. It is not suitable for high-melting-point alloys like aluminum and copper.
2. Short Die Life:
The continuous exposure of the die to the hot molten metal can lead to a shorter die life. The high temperatures and corrosive nature of certain metals may cause faster wear and tear on the die, requiring more frequent replacements. Of course, compared with cold chamber aluminum & copper die casting molds, zamak hot chamber die casting molds' life is longer.
Hot chamber zinc alloy die-cast molds life is about 200,000 injection times, Cold chamber aluminum die casting mold life is about 50,000 injection times, copper die casting mold life is 3,000 ~ 8,000 injection times.
3. Material Limitations:
Hot chamber die casting is limited to materials that do not erode or corrode the components of the injection system. This restricts its use to a specific range of metals.
4. Energy Consumption:
The process involves maintaining a pool of molten metal, which requires a constant input of energy to keep it at the desired temperature. This can result in higher energy consumption compared to other die casting methods.
5. Injection System Maintenance:
The injection system, including the gooseneck and other components, may require regular maintenance due to exposure to high temperatures and contact with molten metal. This can contribute to increased downtime for maintenance purposes.
6. Size Limitations:
Hot chamber die casting machines are generally more compact and suitable for smaller-sized parts. Larger parts may require alternative methods or cold chamber die casting.
7. Alloy Purity Concerns:
Some alloys may experience difficulties in maintaining their purity during the hot chamber die casting process. This can affect the quality of the final product.
8. Safety Considerations:
Working with hot molten metal poses safety hazards. The handling of molten metal requires strict safety measures, and operators must be trained to handle the equipment safely.
Despite these disadvantages, hot chamber die casting remains a valuable process for certain applications, especially when dealing with low-melting-point alloys and small to medium-sized parts. The choice of die casting method depends on the specific requirements of the project and the properties of the metal being used.
Email us : cnkylt@aliyun.com to get a FREE quotation for your Zinc/Zamak 3&5 die casting project.
Components of Hot Chamber Die Casting Machine
With the development of die-casting technology and production needs, various styles of hot chamber die-casting machines have also been developed. KYLT die-casting machines mainly have two types: small bedroom hot chamber die-casting machines and vertical die-casting machines. The following diagram shows the structure and components of our most common hot chamber die-casting machine:

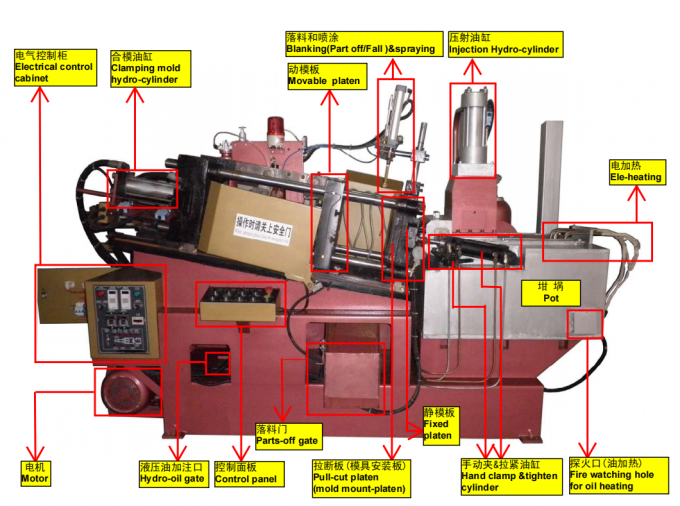

Front side components of hot chamber die casting machine

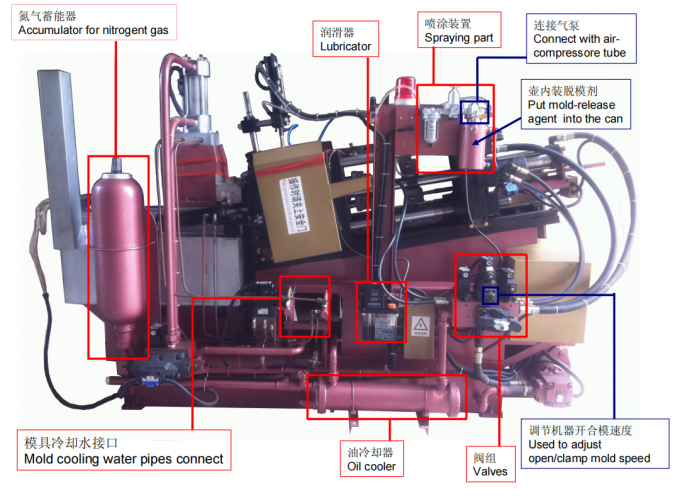

Back side components of hot chamber die casting machine

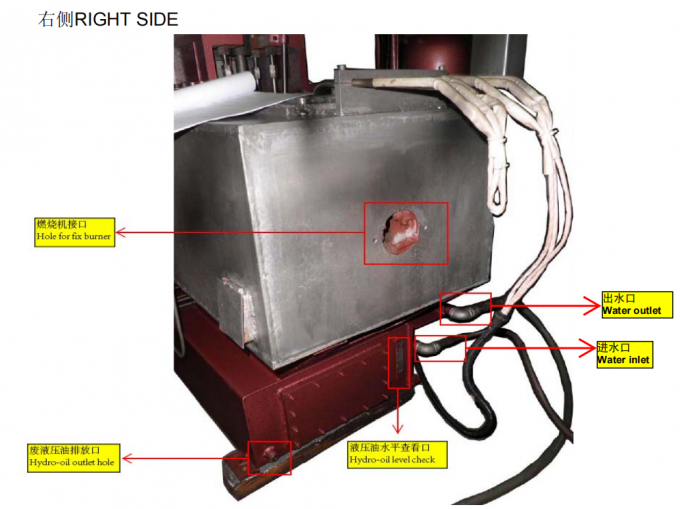

Melting & Injection side structure of hot chamber die casting machine

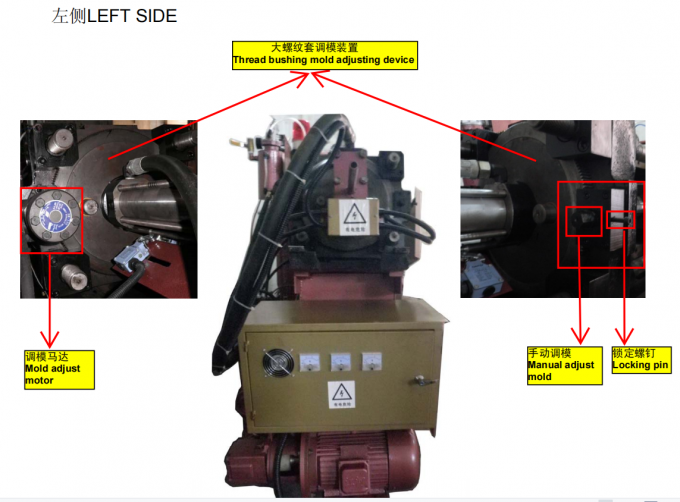

Hydraulic, Electric & Mold adjusting mechanical side structure of hot chamber die casting machine

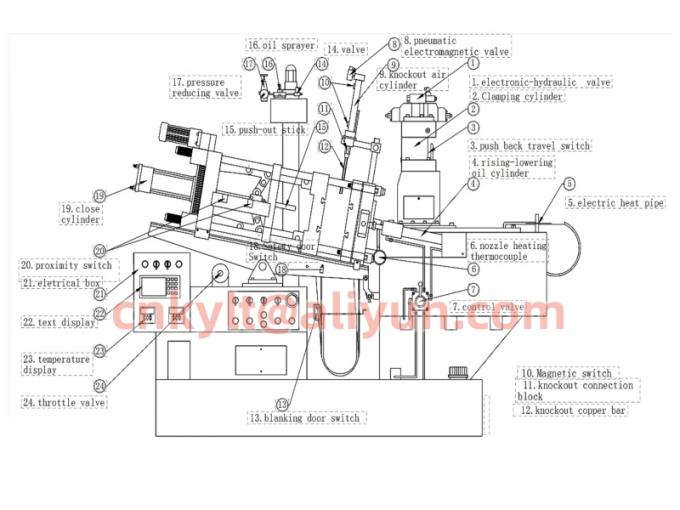

Hot Chamber Die Casting Machine Structure Diagram
Here is the detail structure diagram of horizontal hot chamber die casting machine:
Hot chamber die casting is used for large-scale processing of complex shaped components in Zamak/Zinc or Lead/Pb.
KYLT uses the hot chamber die casting process to produce ZAMAK3 & ZAMAK 5 die casting parts. Through this method, molten metal is automatically supplied to the die-casting machine through a "gooseneck" immersed in a furnace filled with molten metal. At the beginning of the cycle, the piston retracts, filling the gooseneck with molten metal. The piston is activated, and the metal passes through the gooseneck and enters the mold.

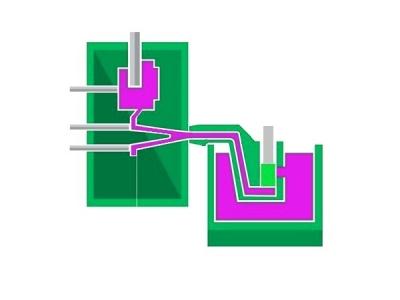

Hot chamber die casting working process video:
The hot chamber die casting process is a metal casting technique used to produce intricate and high-precision metal parts. It involves the following key steps:
1. Die-casting Die Preparation:
The process begins with the preparation of two hardened steel molds, known as dies. These dies are designed to create the desired shape of the final product.
2. Injection System:
In a hot chamber die casting machine, there is a container (or "hot chamber") that holds the molten metal. This container is connected to the die by a gooseneck channel.
3. Filling the Chamber:
The first die is attached to the injection system, and the hot chamber is filled with molten metal, usually zinc, lead/Pb, or tin etc other low-melting-point alloys.
4. Injection into the Die:
The injection system uses a piston to force the molten metal into the die cavity at high pressure. This pressure ensures that the metal fills all the intricate details of the die and solidifies quickly.
5. Cooling and Solidification:
After the molten metal is injected into the die, it quickly cools and solidifies to the shape of the die cavity. The cooling process may be enhanced by the circulation of coolant within the die.
6. Ejection of the Die-casting Part:
Once the metal has solidified, the die opens, and the newly formed part is ejected. The part is now ready for further processing or use.
7. Repetition of the Process:
The entire cycle—die preparation, filling the chamber, injection, cooling, ejection—is repeated for each part. The high-speed and efficiency of this process make it suitable for mass production.
The hot chamber die casting process is particularly advantageous for producing parts with complex geometries, thin walls, and fine details. It is widely used in the manufacturing of components for industries such as automotive, electronics, and consumer goods where high production volumes and precision are essential. The choice of metal alloy depends on the specific properties required for the end product.
KYLT hot chamber zinc alloy die casting parts manufacturing services involve: die casting mold making, zamak injection, zinc die-cast part drilling & tapping, precision CNC turning or milling machining, various kinds of surface finishes, assembling as per demand and export packing etc. Detail information, please email us: cnkylt@aliyun.com
The Differences And Similarities Between Hot Chamber Die Casting And Cold Chamber Die Casting
1. What's the Difference Between Hot Chamber and Cold Chamber Die Casting?
Hot chamber and cold chamber die casting are two different methods of die casting, a metal casting process used to produce geometrically complex metal parts. The primary difference between them lies in how the metal is melted and injected into the die (mold) to form the final product.
Hot Chamber Die Casting Feature:
In hot chamber die casting, the injection mechanism is immersed in a molten metal bath.
The process is mainly used for metals with low melting points, such as zinc, tin, and lead.
The injection system (or gooseneck) is submerged in the molten metal, which remains in the machine.
When the injection piston is activated, molten metal is drawn into the chamber and then forced into the die cavity to create the part.
Hot chamber die casting is known for its efficiency and shorter cycle times but is limited to metals with lower melting points due to the continuous contact with molten metal.
(KYLT hot chamber die-cast servcies for Zamak 3 & Zamak 5 products, you can email us : cnkylt@aliyun.com to get a FREE quotation. )
Cold Chamber Die Casting Feature:
In cold chamber die casting, the molten metal is ladled into the shot chamber from an external source.
This method is preferred for casting alloys with higher melting points, such as aluminum, magnesium, and copper.
The injection mechanism is not in direct contact with the molten metal. Instead, a separate furnace or crucible is used to melt the metal, and then it is transferred to the cold chamber for injection.
Cold chamber die casting allows for the casting of alloys with higher melting points because the injection system is not constantly exposed to the molten metal, preventing corrosion and erosion issues.
In summary, the choice between hot chamber and cold chamber die casting depends on the specific metal being used and its melting point. Hot chamber die casting is suitable for low-melting-point metals, while cold chamber die casting is more appropriate for high-melting-point alloys. Each method has its advantages and limitations, and the selection is based on factors such as material requirements, part complexity, and production volume.
(KYLT cold chamber die-cast servcies for Aluminum alloy (A380, ADC12 etc.) & Zamak 3 or Zamak 5 products, you can email us : cnkylt@aliyun.com to get a FREE quotation. )
2. What are the similarities between hot chamber die casting and cold chamber die casting?
The key operational difference between hot chamber die casting and cold chamber die casting lies in how the molten metal is processed and injected into the mold. Hot chamber die casting involves the injection mechanism being immersed in molten metal, while cold chamber die casting relies on an external melting source with the injection system separate from direct contact with the molten metal.
While hot chamber die casting and cold chamber die casting have notable differences, they also share some similarities in the overall die casting process. Here are the key similarities:
Die Casting Process:
Both hot chamber and cold chamber die casting are high-pressure casting processes that involve injecting molten metal into a die (mold) cavity to produce complex metal parts.
Die and Mold Design:
The basic principles of die and mold design are similar in both processes. Dies are precision tools that are designed to shape and form the molten metal into the desired final product.
High Precision and Complexity:
Both methods are capable of producing high-precision and complex geometric shapes with tight tolerances. This makes them suitable for manufacturing intricate metal components.
Metal Alloys:
Both hot chamber and cold chamber die casting can be used to cast a variety of metal alloys, depending on the specific requirements of the application. Commonly cast materials include zinc, aluminum, magnesium, and copper alloys.
Production Efficiency:
In terms of production efficiency, both processes offer advantages compared to other casting methods. They can achieve high production rates and are well-suited for large-scale manufacturing.
The selection of hot or cold chamber die casting methods is usually based on the specific requirements of the metal being cast and considerations of the overall manufacturing process.
(KYLT provides 'One-stop full services' for cold & hot chamber die-cast to manufacturing all kinds of Aluminum & Zinc alloy die casting parts, For detailed information or a Free quotation you can email us : cnkylt@aliyun.com )

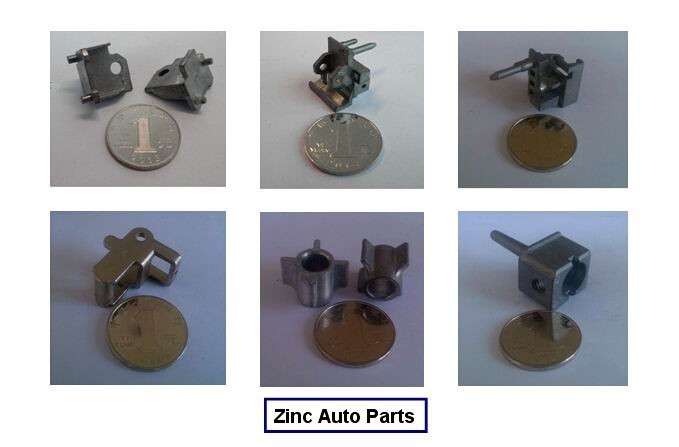

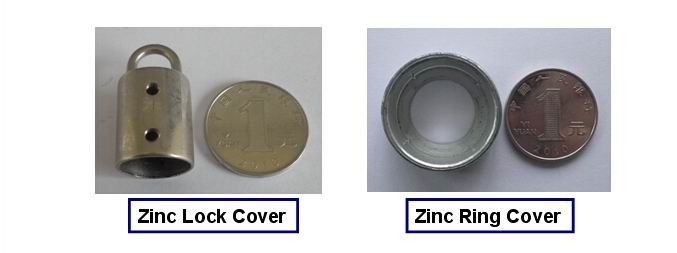

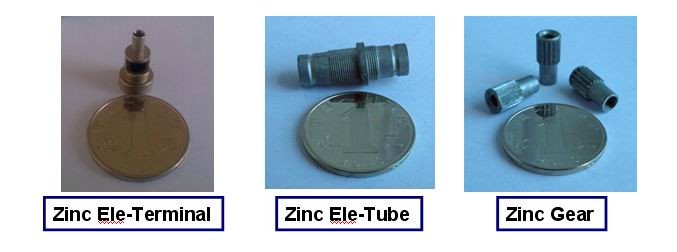

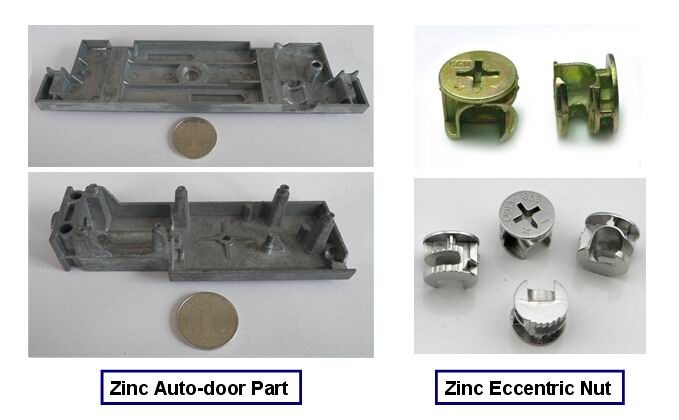

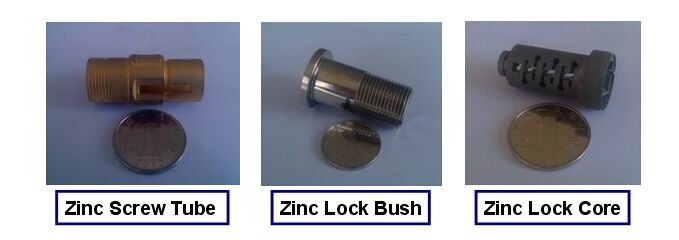

Applications of KYLT Zinc Alloy Hot Chamber Die Casting
Hot chamber die casting is a versatile manufacturing process suitable for a range of applications, particularly those involving low-melting-point Zinc/Zamak alloy. Some detailed applications of hot chamber die casting include:
1. Automotive Components:
Hot chamber die casting is widely used in the automotive industry for producing various components such as engine parts, transmission components, and decorative trim. The process's efficiency and precision make it ideal for large-scale production of intricate automotive parts.
2. Consumer Electronics:
Components of consumer electronic devices, such as laptop housings, smartphone casings, and connectors, are often manufactured using hot chamber die casting. The process allows for the production of complex shapes with high accuracy.
3. Household Appliances:
Hot chamber die casting is employed in the production of parts for household appliances like washing machines, refrigerators, and vacuum cleaners. The method's ability to create detailed and functional parts makes it valuable for appliance manufacturing.
4. Plumbing and Hardware Components:
Various plumbing and hardware components, including faucets, handles, and valve bodies, are commonly produced through hot chamber die casting. The process ensures that these components meet the required strength and precision standards.
5. Tools and Equipment:
Hot chamber die casting is utilized for the production of tools and equipment components, such as power tool housings, gardening equipment parts, and machinery components. The process helps achieve the necessary strength and durability for these applications.
6. Lighting Fixtures:
Components of lighting fixtures, such as lamp bases and housings, are often manufactured using hot chamber die casting. The method allows for intricate designs and accurate production of parts for lighting applications.
7. Toys and Recreational Products:
Certain toys and recreational products, especially those requiring precise and intricate shapes, are produced using hot chamber die casting. Examples include toy car components and small metal parts for recreational equipment.
8. Medical Devices:
Some medical devices and equipment components, particularly those made from suitable low-melting-point alloys, can be produced using hot chamber die casting. Examples include certain instrument housings and components.
9. Agricultural Equipment Parts:
Parts for agricultural equipment, such as components for tractors and farming machinery, may be manufactured using hot chamber die casting. The process allows for the production of strong and durable parts for agricultural applications.
KYLT has hot chamber die casting machines to produce Zamak3&5 alloy parts.
Custom Zinc die casting parts services:
1. Zamak part analysis, die casting die design, die cast mold making.
2. Machining: drilling, tapping, CNC turning & milling by 3/4 axis etc.
3. Surface finishes: trimming, sanding, polishing, shot blasting, Medium grinding, magnetic grinding, painting, plastic powder coating, electrophoretic paint, plating etc.
4. Assembling as per customers' demand, and ready other spare parts such as plastic injection parts, welding parts, stamping parts, machining parts etc, which are used for semi-finished or finished assembling.
5. Safe export packing
