PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine

PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine

    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
    • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine
  • PLC150T Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine

    Product Details:

    Place of Origin: CHINA 150T die casting machine
    Brand Name: LZ 150T die casting machine
    Certification: GB standard die casting machine 150t
    Model Number: 150T cold chamber die casting machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Please email: stonechenpeng@aliyun.com, kylt@cnkylt.com
    Packaging Details: by container
    Delivery Time: 30-45days
    Payment Terms: T/T, D/P, L/C
    Supply Ability: 300sets
    Contact Now
    Detailed Product Description
    150t PLC Die Casting Machine: 150t Aluminum Alloy Die Casting Machine With PLC 150t Copper/brass Die Casting Machine With PLC: PLC 150t Magnesium Die Casting Machine
    150t PLC Zinc/zamak Die Casting Machine: 150t Metal Pressure Die Casting Machine With PLC

    PLC 150T High Speed High Pressure Aluminum, Copper/brass, Magnesium, Zinc(zamak), Lead(Pb.) Metal Alloy Horizontal Cold Chamber Die Casting Machine

    What is PLC 150T High Pressure Die Casting Machine used for?

    -PLC 150T high pressure die casting machine normally used to cast small aluminum alloy parts which dosage of per inject can be reach (Alu.)0.8/1.2/1.8KG.

    -PLC 150T high pressure die casting machine suitable for produce: Aluminum, Copper/brass, Magnesium, Zinc(Zamak), Lead(PB.) alloy parts of Automotive, motorcycle, filter, power tool, pneumatic tool, Electric power fittings , Door Closer, lamps and lanterns, explosion-proof products, pneumatic components, motor,  diesel engine, gas oil machine, water pump, water heating equipments, desk & chair foots and arms, telecommunication,weapen etc  military industrial and domestic lines.



    PLC 150T High Pressure Die Casting Machine Features:

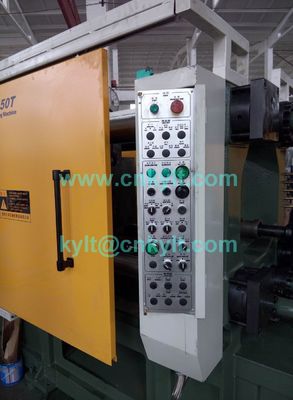

    1. Electrical System: adopts Mistsubishi, Omron or Schneider PLC control unit; casting parameters be adjusted from touch screen easily, which guarantee our 150t high pressure horizontal cold chamber die casting working with stable, fast, safe and operation more reliable and precision.

    2. Pressure & Speed Control: 150T horizontal cold chamber die casting machine adopt Rexroth or Yuken proportional pressure valves and proportional direction valves, which have the functions of multi-stage pressure / speed control and mould clamping protect in low pressure.

    3. Mould Platens: adopt High-quality nodular cast iron for mould platens which analysed and calibrated by finite-element method (FEM). All mould platens have features: reasonable pressure distribution, small deformation, high precison mould clamping. Whole 150T die casting machine mould platens also showed: high rigidity, good abrasive resistance.

    4. Hydraulic Oil Pump: imported famous brand duplex vane pump with high-performance and low-noice be used in 150T PLC horizontal high pressure die casting machine.

    5. Injection System: adopt independent accumulators, quick-injection and pressurize use newly developted rapid response throttle valves which increased the acceleration performance of quick-injection greatly, shorten the switching time of high-speed and pressurize. It is the symbol of advantageous injection performance of modern high quality PLC 150T Horizontal High Pressure Aluminum, Copper/brass, Magnesium, Zinc(zamak), Lead(Pb.) Metal Alloy Cold Chamber Die Casting Machine.

    6. Lubrication System: adopt self-check joints, any blocks in oil passages can be respond fastly and easily. Underpressure protection system avoid the toggle parts of PLC 150T die casting machine damagned from oil starvation, extend the die casting machine using time.

    7. Precison Die Casting Machine Parts: all parts of 150T die casting machine use CNC machining to guarantee precision.

    8. Cold Assembly Processes: axle sleeves of 150T PLC die casting machine adopts cooling assembly method to avoid parts deformation in assembling which keep the whole precision of high pressure die casting machine.

    9. Tie bars: High strength alloy steel tie bars, surface with hard chromium plating to insure the die casting machine mould platens moving more stable, tie bars more wearable.

    Top 10 Reasons to get PLC 150T High Pressure Horizontal Cold Chamber Die Casting Machine:

    --PLC 150T DIE CASTING MACHINE JUST USE FAMOUS BRANDS SPARE PARTS.

    1.Operation Panel language: English, Chinese (or as per client's demand)
    2.PLC control: Mistsubishi, Omron,Schneider famous brand PLC can be chosen
    3.Screen: TouchWin etc
    4.Hydraulic pump: HYTEK etc
    5.Valves: Rexroth, Yuken,HYTEK etc
    6.Cooler: Longteng etc
    7.Lubricate system: Liubian etc
    8.Contactor: Schneider etc
    9.Sealing system: Fischer etc
    10.Hydraulic hose: AEROQUIP etc
    (If needed, We should list all famous brand elements as per clien's requirements in contract. )


    Detail Parameters for 150T PLC Aluminum,Copper/brass,Magnesium,Zinc(zamak) Metal cold chamber die casting machine:

    TYPE
    150T PLC
    Aluminum, Copper/brass, Magnesium, Zinc(Zamak), Lead(Pb.) Metal High Pressure Cold Chamber Die Casting Machine with high pressure and speed
    Die locking force
    1500KN
    Inner space between tie bars (H*V)
    440*440MM
    Bars dia.
    80MM
    Die thickness
    (Min-Max.)
    200-550MM
    Die stroke
    350MM
    Ejection stroke
    50MM
    Ejection force
    100KN
    Injection force
    (with intensification)
    180KN
    Inject stroke
    345MM
    Shot sleeve dia.
    40/50/60MM
    Dosage of fluid metal per inject (Alu.)
    0.8/1.2/1.8KG
    Casting pressure
    (with intensification)
    143/92/64MPa
    Projection area of casting
    105/163/234CM2
    Max casting area
    375 CM2
    Injection position
    0,-140MM
    Over height of flange
    10-0.05MM
    Dia. of shot sleeve flange
    110MM
    Plunger penetration
    120MM
    Dry cycle
    7S
    Working pressure of pipes
    14MPa
    Motor power
    11KW
    Oil tank capacity
    450L
    Machine weight
    6000KG
    Machine dimensions
    (L*W*H)
    5*1.4*2.2M







    Die(mould) Platens / Die Fitting Diagram / Mounting Base Drawing of 150T PLC Aluminum, Copper/brass, Magnesium, Zinc(zamak) Metal cold chamber die casting machine:

    150T PLC aluminum alloy die casting machine die platen drawing die fitting drawing mounting foundation base drawing

    High Speed High Pressure PLC Aluminum, Copper/brass, Magnesium, Zinc(zamak), Lead(Pb.) Metal Alloy Horizontal Cold Chamber Die Casting Machine Tonnage list:

    150T, 160T, 180T, 220T, 280T, 300T, 350T, 400T, 550T, 700T, 850T, 1100T, 1300T, 1600T, 2000T

    Other names of cold chamber die casting machine:

    aluminum zinc zamak alloy pressure die casting machine, aluminum zinc zamak pressure injection machine, magnesium alloy die casting machine, copper brass pressure die casting machine



    150T High Speed High Pressure PLC Aluminum, Copper/brass, Magnesium, Zinc(zamak), Lead(Pb.) Metal Alloy Horizontal Cold Chamber Die Casting Machine Price, Pls. contact as follows:
