STAINLESS PART MACHINING BY CNC

STAINLESS PART MACHINING BY CNC supplier
STAINLESS PART MACHINING BY CNC supplier STAINLESS PART MACHINING BY CNC supplier STAINLESS PART MACHINING BY CNC supplier STAINLESS PART MACHINING BY CNC supplier STAINLESS PART MACHINING BY CNC supplier
Basic Information
Place of Origin: China CNC machining
Brand Name: Precision CNC machining
Certification: precison machining
Model Number: stainless steel
Minimum Order Quantity: 10PCS
Price: USD
Packaging Details: carton
Delivery Time: 4days
Payment Terms: T/T
Supply Ability: 2000pcs/week
Contact Now
Machining: Grinding, WEDM, Milling, Turning Material: 304 Stainless Steel
Tolerance: +-0.1mm Precision: High Precision

Stainless part machining by CNC to insure high precision and Corrosion resistance. Here, The finished part has 3 machining methods: NC lathe turning, WEDM machining, CNC milling.

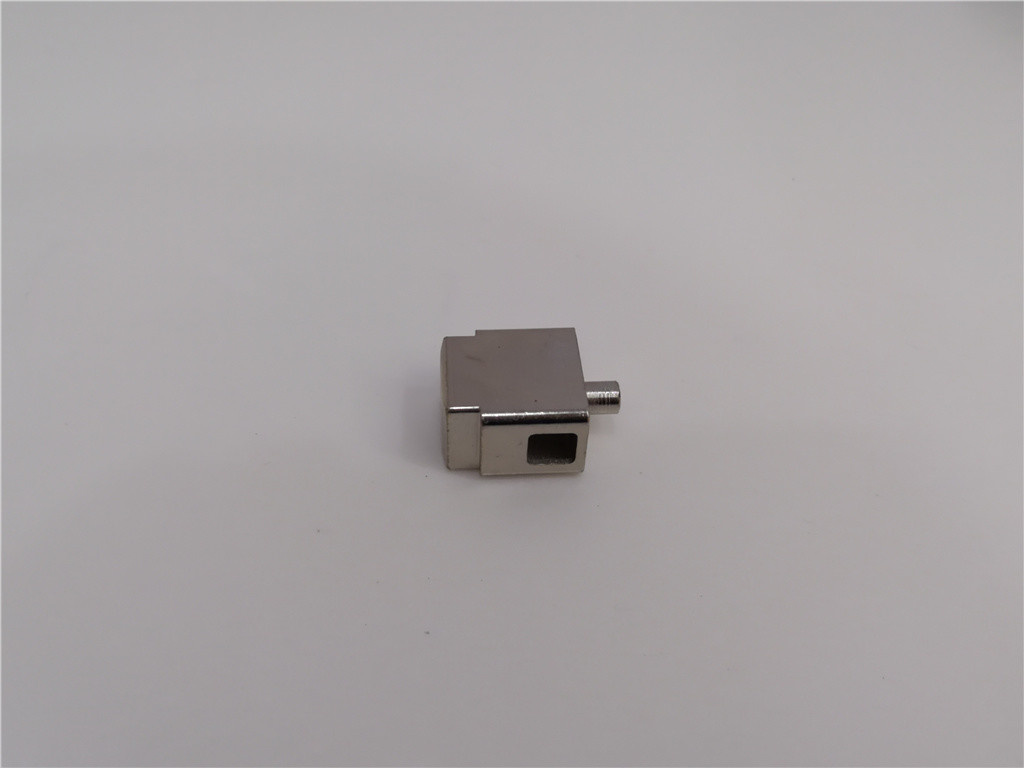

Machined Stainless part structure description:

  1. Rectangle block: Length:20mm, Width:20mm, Thickness:12mm
  2. Pin structure on the top of rectangle block: pin length:6mm, pin dia.:5mm
  3. bottom of the block has 2 steps on both side: step deepth:6mm, step width:3mm
  4. rectangle block corners with chamfer
  5. Block body with a square through hole:Length:7mm, Width: 7mm, Deepth:20mm
STAINLESS MACHINE PART
STAINLESS MACHINE PART

What is the Stainless Part machining processes?

  1. Rough cut stainless steel material to long piece
  2. CNC milling or grinding the steel piece to got a precision and smooth piece
  3. WEDM machining to make the square structure
  4. NC lathe turning to finish the pin structure
  5. CNC milling to finish two steps and chamfer corners
STAINLESS PART MACHINING BY CNC
STAINLESS PART MACHINING BY CNC

STAINLESS PART STRUCTURE DETAIL VIDEO SHOW:

https://youtu.be/LXAF64O64cU

MORE KYLT STAINLESS PART MACHINING SERVICES & PRODUCTS INFORMATION:

Visit CNC Milling Parts, EDM/WEDM Parts , CNC Machining Service, Rapid Prototype for your reference.

To get more information about KYLT products and services, please e-mail to cnkylt@aliyun.com to get a FREE quote.

KYLT Precision CNC machining services (milling & turning service), Fast prototyping, Fixture/Jig/Tooling making, Aluminum die casting & plastic injection parts. Email:cnkylt@aliyun.com +008615195010186
