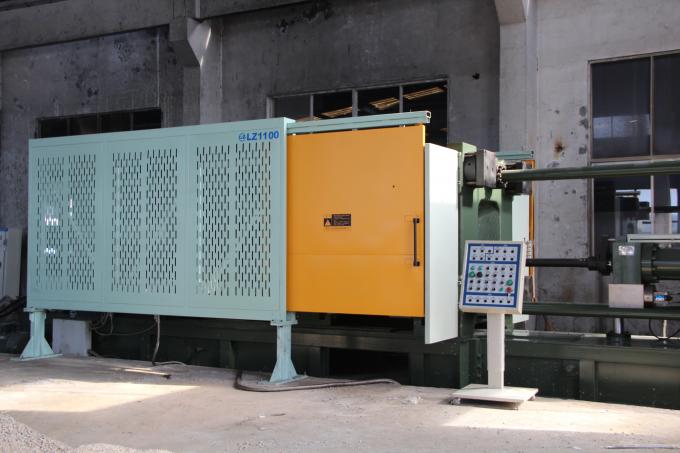

Cold Chamber Horizontal Pressure Die Casting Machine

Basic Information
Place of Origin: CHINA
Brand Name: LZ
Certification: CE LVD MD
Model Number: 150-2000T
Minimum Order Quantity: 1set
Packaging Details: container
Delivery Time: 30-40days
Payment Terms: T/T
Supply Ability: 300set/year
Contact Now
Material: Aluminum,zinc/zamak Warranty: 1 Year
Voltage: 380V,3HP Computerized: Yes
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Installation

Over 35 years experience of the die casting machine design and manufacturing.

Cold Chabmer Die Machines tonnages:150T, 160T, 200T, 280T, 300T, 350T, 400T, 550T, 700T, 800T, 1100T.
LZ Cold Chamber Die Casting Machines are widely used in manufacturing Aluminum, Magnesium, Zinc, Copper alloy die casting parts.
Quality guarantee period is 12 months after machine put in to operation.
Service for over 3 hunders small and medium-sized enterprises in china, and export to Egypt, Yemen, India, Vitenam, Algeria etc countires.

As one Cold Chamber Die Casting Machines manufacturer, LZ brand has over 35 years experience of the die casting machine design and manufacturing.

With good quality and stable function, LZ die casting machinery service for over 3 hunders small and medium-sized die casting companies and suppliers in china, and export to Egypt, Yemen, India, Vitenam, Algeria etc countires.

Die Casting Machine manufacturer

We experience on provide "ONE-STOP" service and solution for your die casting projects. The materials are widely used in manufacturing Aluminum, Magnesium, Zinc, Copper alloy die casting parts.

How to classify the type of Horizontal Cold Chamber Die Casting Machine?

  1. Cold Chamber Pressure Die Casting Machine tonnages are different from 160T, 200T, 280T, 350T, 550T to 1100T.

  2. According materials types of die casting, the cold chamber die pressure casting machines can be calssified:

    Aluminum Die Casting Machine, Magniesium Die Casting Machine, Zinc/ZAMAK Die Casting Machine, Copper/Brass Die Casting Machine.

  3. As per automatic grade, the die casting machinery can be classified: Manual Die Casting Machine, Automatic Die Casting Machine.

  4. As per injection method, the metal castingmachine can be named: Plunger Cold Chamber Die Casting Machine, High Pressure Casting Chamber Machine

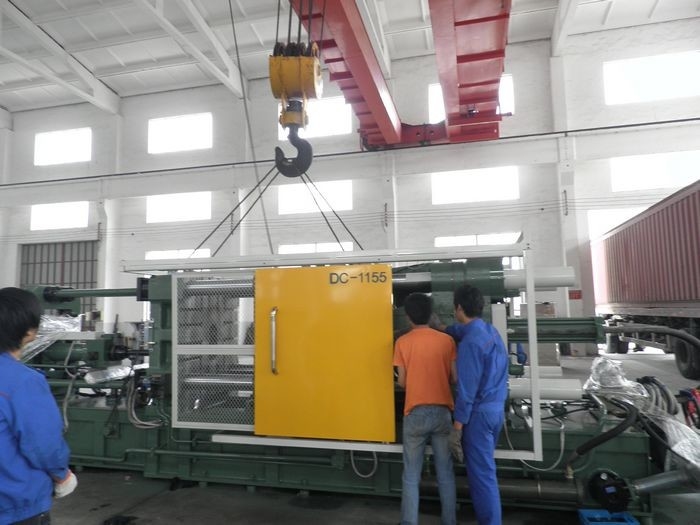

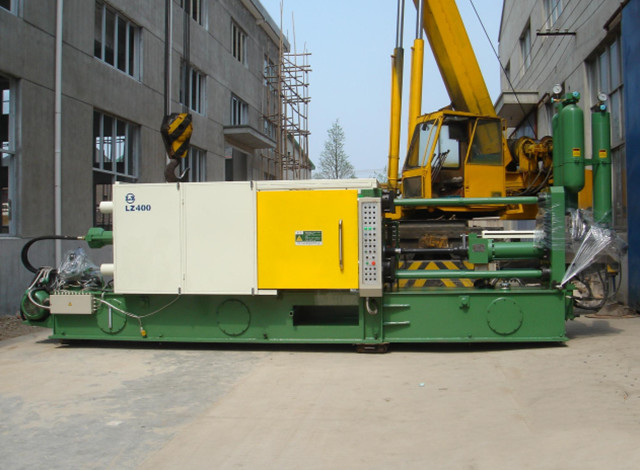

    Cold Chamber Pressure Die Casting Machine

LZ Die Cast Machine quality waranty and services:

  1. die casting factory design

  2. casting machines assembly and adjustment

  3. die cast molds & tools making

  4. finished casting parts

LZ High Pressure Die Casting Machines Useage and Characteristic:

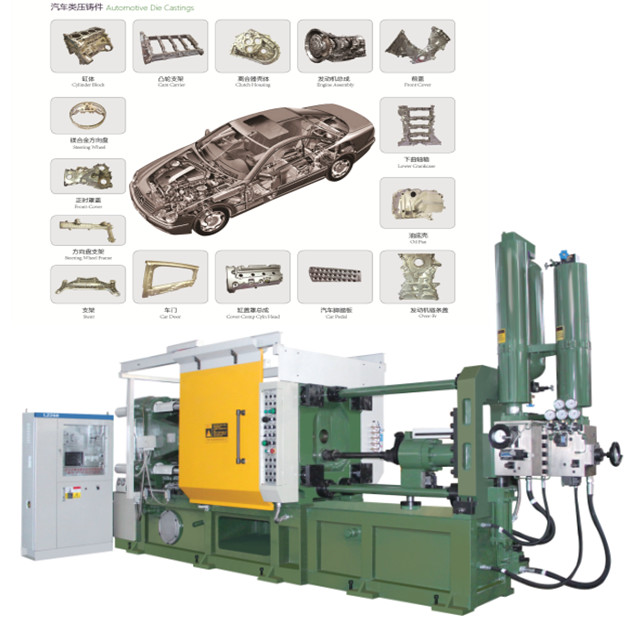

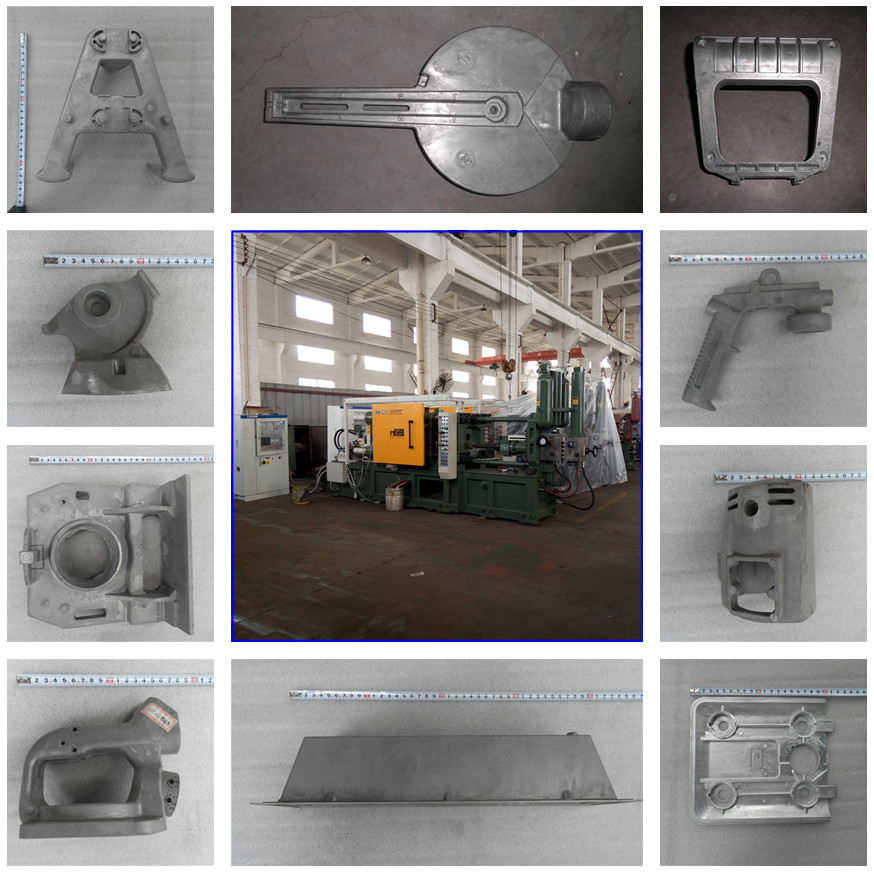

LZ High Pressure Casting Machines are widely used in industrial lines of Aviation, Automobile, Motorcycle, Telecom instrument, Electrical home appliances hardware. And they are used to produce large Aluminum, Magniesium, Zinc, Copper and other non-ferrous metal casing parts.

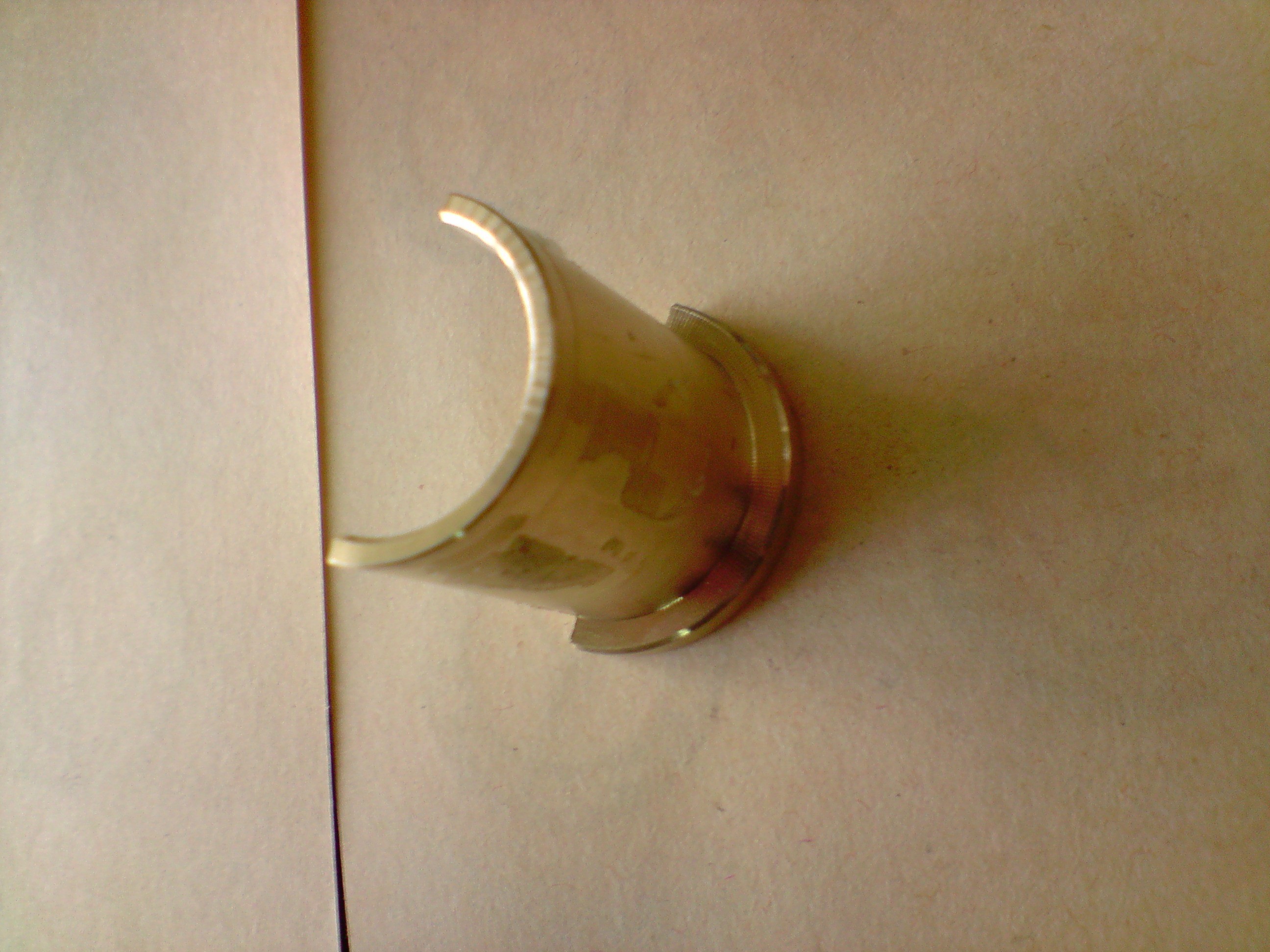

die casting parts

LZ Cold Chamber Die Cast Machine advantages:

  1. High performance:

    The max. dry inject speed over 7m/s, and pressurization & creation duration more fast.

    Injection system

  2. High reliability:

    Metal Die Casting Machine adopts PLC programmable controller. And control the transmission by the hydraulic pressure drove. (That is reason,why the casting machine also named: Hydraulic die casting machine, PDC - Pressure Die Casting Machine .) Diecast machinery is designed & produced as per excellent quality structure. They are reliability and durability.

    PLC electric system

  3. High-speed die-casting production:

    Die locking force and injection force adopts the proportion of conditioning systems. Which keep the machines always in the rational work state. So these machines realize high-speed production.

    Pressure control system

  4. Stable clamping system:

    The clamping parts are made of high-strength nodular cast iron and inclined row structure. Finite element analysis used to check the clamping system. The pressure distribution is reasonable. That ensure the long-term stability of the machine accuracy, not easy to deform. Significantly reduce the impact of opening and closing mold, and prolong the machine life.

    die-cast machine nodular cast iron

  5. Sensitive hydraulic system:

    The hydraulic system adopts proportional control system. The parameters setting is convenient. The die casting mechanism operation is fast, stable, safe and reliable.

    die casting machine hydraulic system

  6. Fast injection system:

    The injection system adopts independent accumulator. The fast injection & pressurization adopts newly developed fast reaction throttle valve. Which greatly improves the acceleration performance of fast injection. Shorten the switching time of high-speed and pressurization. It is an important symbol of the superior injection performance of modern high-quality die casting machine.

    die casting machine fast injection system

  7. Famous brands PLC control system:

    The electrical system: Mitsubishi PLC, OMRON PLC and Schneider electric components.

    Touch screen used to adjust and set the parameters.

die casting machine PLC control system

  1. Quality lubrication system:

The lubrication system of die casting machine parts adopt self inspection connector. If the oil circuit is blocked at any point that can be quickly detected. The undervoltage protection system can prevent the elbow parts from serious wear and even fracture due to lack of oil, and prolong the service life of the casting equipment.

die cast machine lubircate system

LZ series cold chamber die casting machine technical specifications

1. LZ150~268T Main specifications and parameters.

No. ITEM UNIT LZ150/160 LZ180 LZ200 LZ268
1 Clamping Force KN 1500/1600 1800 2000 2680
2 Inner space between tie bars
(H*V)
mm 440×440 480×480 490×490 540×540
3 Die Stroke mm 340 380 380 450
4 Die Thickness mm 200~550 200~550 200~550 250~650
5 Ejection Stroke mm 80 80 80 110
6 Ejection Force KN 100 110 110 150
7 Injeciton Force KN 110~190 105~230 105~236 133~280
8 Injection position
(center is "0",down is "-")
mm 0,-70,-140 0,-140 0,-140 0,-160
9 Dia. of shot sleeve mm 40,50,60 50,60,70 50,60,70 50,60,70
10 Dia.of Injection chamber flange mm 110 110f7 110f7 110f7
11 Over height of flange mm 10-0.05 10-0.05 10-0.05 12-0.05
12 Dosage of fluid metal pershot kg 1.8 2.5 2.5 3.2(Al). 2.3(Mg)
13 Projected area cm 105~550 171~666 172~660 196~800
14 Injection pressure Mpa 36~149 27.3~117 28~118 35~143
15 Dry cycle s 7 7 7 10
16 Oil tank capacity L 450 550 650 750
17 Motor power KW 11 11 15 18.5
18 Machine sizes
(L*W*H)
M 5.1×1.2×2.2 5.7×1.3×2.4 5.8×1.25×2.4 6.4×1.6×2.8

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

2. LZ300~550T Main specifications and parameters.

No. ITEM UNIT LZ300 LZ350 LZ400 LZ550
1 Clamping Force KN 3000 3500 4000 5500
2 Inner space between tie bars
(H*V)
mm 580×580 600×600 630×630 750×750
3 Die Stroke mm 450 560 580 580
4 Die Thickness mm 250~650 250~700 300~800 350~850
5 Ejection Stroke mm 110 145 145 150
6 Ejection Force KN 150 170 190 266
7 Injeciton Force KN 133~300 150~360 160~400 200~520
8 Injection position
(center is "0",down is "-")
mm 0,-160 0,-160 0,-175 0,-220
9 Dia. of shot sleeve mm 50,60,70 60,70,80 60,70,80 70,80,90
10 Dia.of Injection chamber flange mm 110f7 110f7 130 130f7
11 Over height of flange mm 12-0.05 12-0.05 15-0.05 15-0.05
12 Dosage of fluid metal pershot kg 3.2(Al.) 2.3(Mg.) 4.2(Al.) 3.0(Mg.) 5(Al.) 6(Al). 4.3(Mg)
13 Projected area cm 196~800 275~1167 283~1258 407~1749
14 Injection pressure Mpa 35~143 30~127 35~142 31.5~135
15 Dry cycle s 10 10 10 13
16 Oil tank capacity L 750 800 800 1100
17 Motor power KW 18.5 22 22 30
18 Machine sizes
(L*W*H)
M 6.4×1.6×2.8 6.8×1.7×2.8 7.5×1.9×3.0 8.0×2.0×3.8

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)



3.LZ700~1300T Main specifications and parameters.

No. ITEM UNIT LZ700 LZ850 LZ1100 LZ1300
1 Clamping Force KN 7000 8500 11000 13000
2 Inner space between tie bars
(H*V)
mm 830×830 920×920 1030×1030 1100×1100
3 Die Stroke mm 820 900 950 850
4 Die Thickness mm 350~900 400~1000 450~1150 550~1200
5 Ejection Stroke mm 200 240 190 200
6 Ejection Force KN 316 400 500 570
7 Injeciton Force KN 235~680 280~750 900 440~1100
8 Injection position
(center is "0",down is "-")
mm 0,-250 0,-250 0,-150,-300 0,-320
9 Dia. of shot sleeve mm 80,60,100 80,60,100, 110,120 90,100,110,120,130 100,110,120, 130,140
10 Dia.of Injection chamber flange mm 165f7 180f7 240f7 130f7
11 Over height of flange mm 15-0.05 20-0.05 20-0.05 25-0.05
12 Dosage of fluid metal pershot kg 12.4(Al.) 16(Al.) 21.1(Al.) 26(Al).
13 Projected area cm 518~972 570~3400 711~3166 928.6~4545
14 Injection pressure Mpa 30~135.4 68~149 30~133.6 28.6~140
15 Dry cycle s 13 14 14 19
16 Oil tank capacity L 1200 1600 1600 2200
17 Motor power KW 37 45 30*2 37*2
18 Machine sizes
(L*W*H)
M 8.6×2×3.3 10.5×2.4×3.4 9.1×2.2×3.3 12×2.8×4.5

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

4.Cold Chamber Die Casting Machine Catalog & Brochure download:

  1. PDF TYPE:

    LZ150~LZ2000 Cold Chamber Horizontal Pressure Die Casting MachineLZ150LZ2000 cold chabmer die casting machine specifications and parameters.pdf

  2. JPG TYPE:

    LZ150~LZ550 Cold Chamber Horizontal Pressure Die Casting MachineLZ150LZ550 cold chabmer die casting machine specifications and parameters.jpg

    LZ700~LZ2000 Cold Chamber Horizontal Pressure Die Casting MachineLZ700LZ2000 cold chabmer die casting machine specifications and parameters.jpg

  3. More die casting machine catalog, images, photos or die casting videos, pls. email us: cnkylt@aliyun.com

  4. The information of die casting machine for sale and die casting machine price, pls. email us: cnkylt@aliyun.com

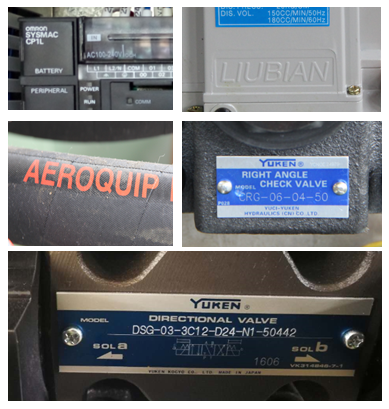

5.Key Elements Brands of die casting machine:



NO. ITME BRAND REMARK
1 Hydraulic oil pump HYTEK CHINA
2 Magnetic valve,Electro-hydraulic valve HYTEK CHINA
3 Cooler LONGTENG Joint-venture
4 Lubrication equipment LIUBIAN CN-JP joint
5 PLC OMRON JAPAN
6 Contactor SCHNEIDER FRENCH
7 Touch screen TouchWin CANADA
8 Sealing system(glyd ring,step seal) FIETZ GERMANY
9 High-pressure hose AEROQUIP USA

(Remark: Spare parts brands can be changed as per customer demand. The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. Spare parts brands can be changed as per customer demand.)

famous brand of die casting machine spare parts

Servo Drive Cold Chamber Die Casting Machine

Servo Motor used to drive the die casting machine and conserve energy, which help die casting factory to save money. It is the key character of servo pressue die casting machine.

The Servo dirven cold chamber die casting machine extra working process consists: Pressure instruction unit, Pressure feed back unit, Discharge instruction unit, CRN open, Speed feedback unit,

servo die casting machine

Cold Chamber Die Casting Machine Services and Warranty:

1.Pre-sale Service

By providing customers with pre-sales services of investment budget, plant planning and other forms, customers' planningis reasonable, standardized and cost saving.
