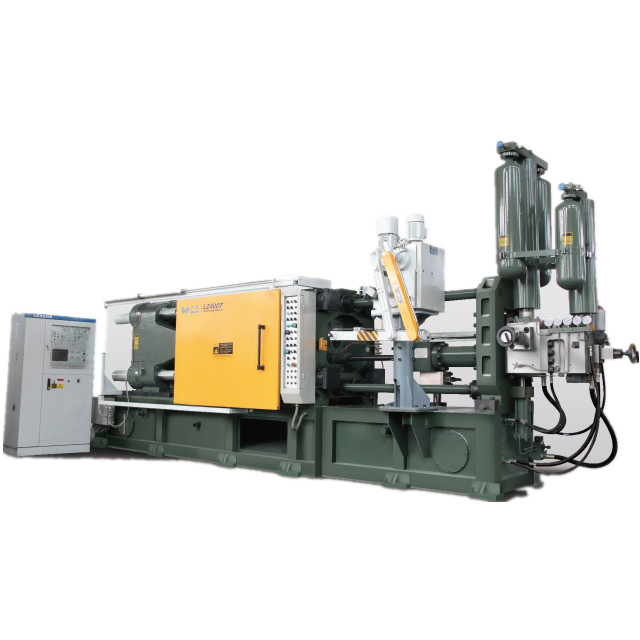

400 Ton PLC Horizontal High Pressure Die Cast Machine

Basic Information
Place of Origin: CHINA
Brand Name: LZ
Certification: CE LVD MD
Model Number: 400T
Minimum Order Quantity: 1set
Packaging Details: container
Delivery Time: 30-40days
Payment Terms: T/T
Supply Ability: 300set/year
Contact Now
Material: Aluminum,zinc/zamak Warranty: 1 Year
Voltage: 380V,3HP Computerized: Yes
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Installation Usage: Aluminum, Zinc, Lead, Copper Die Casting

LZ4000KN High Pressure PLC Die Cast Machine factory. Over 35 years experience of the die casting machine design and manufacturing.

Usage: manufacturing Aluminum, Magnesium, Zinc, Copper alloy die casting parts. Email: cnkylt@aliyun.com

400 Ton PLC Horizontal High Pressure Die Cast Machine Specification (LZ400T)

No. ITEM UNIT LZ400
1 Clamping Force KN 4000
2 Inner space between tie bars(H*V) mm 630×630
3 Die Stroke mm 580
4 Die Thickness mm 300~800
5 Ejection Stroke mm 145
6 Ejection Force KN 190
7 Injeciton Force KN 160~400
8 Injection position(center is "0",down is "-") mm 0,-175
9 Dia. of shot sleeve mm 60,70,80
10 Dia.of Injection chamber flange mm 130
11 Over height of flange mm 15-0.05
12 Dosage of fluid metal pershot kg 5(Al.)
13 Projected area cm 283~1258
14 Injection pressure Mpa 35~142
15 Dry cycle s 10
16 Oil tank capacity L 800
17 Motor power KW 22
18 Machine sizes(L*W*H) M 7.5×1.9×3.0

(Remark: 1.The die casting machine supplier keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. 2. Servo die casting machine can be choosed to save energy and cost. )

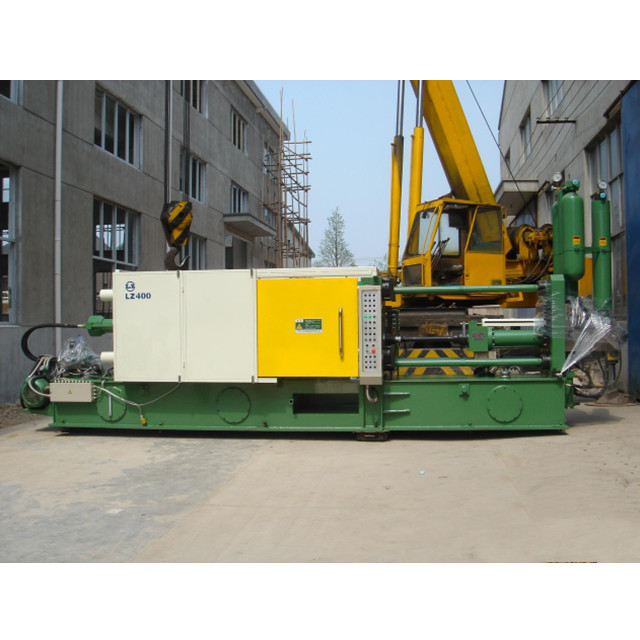

400 Ton PLC Horizontal High Pressure Die Cast Machine

Full automatic aluminum cold chamber die casting video:

Youtube: https://youtu.be/npYbgva3NK8

Manual die casting video:

Youtube: https://youtu.be/LCafa6yLESc

Die casting working process of cold chamber horizontal machine:

Die casting machine operator ladles the liquid Aluminum/Zinc/Copper alloy out from furnace, pure it into pressure casting chamber. Cold chamber die casting machine plunger inject the liquid metal alloy to pressure die with high pressure. Metal alloy solid, die open, the die casting parts be ejected out from mould cavities. A die casting injection process is finished, sprayer lubricates and cools the die cavites, mould close, and ready to start the next pressure die casting cycle.

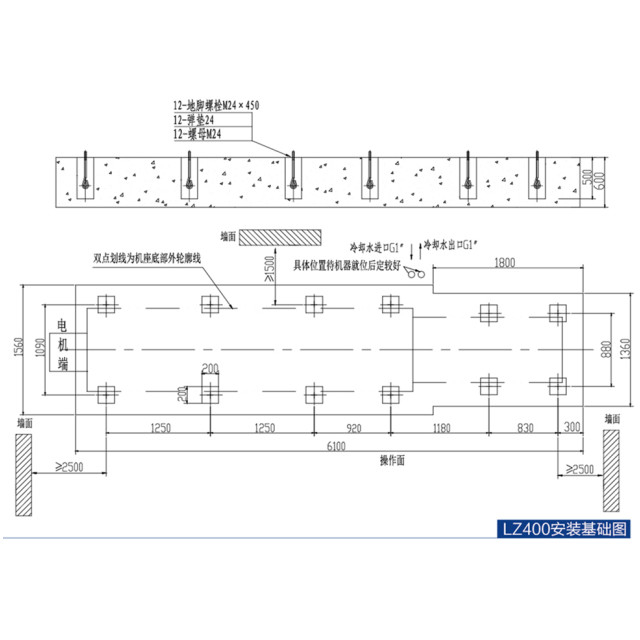

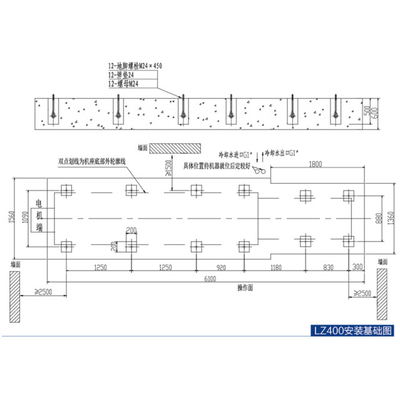

LZ 400 Ton PLC Horizontal High Pressure Die Cast Machine Cement Ground Specification:

400 Ton PLC Horizontal High Pressure Die Cast Machine Cement Ground Specification

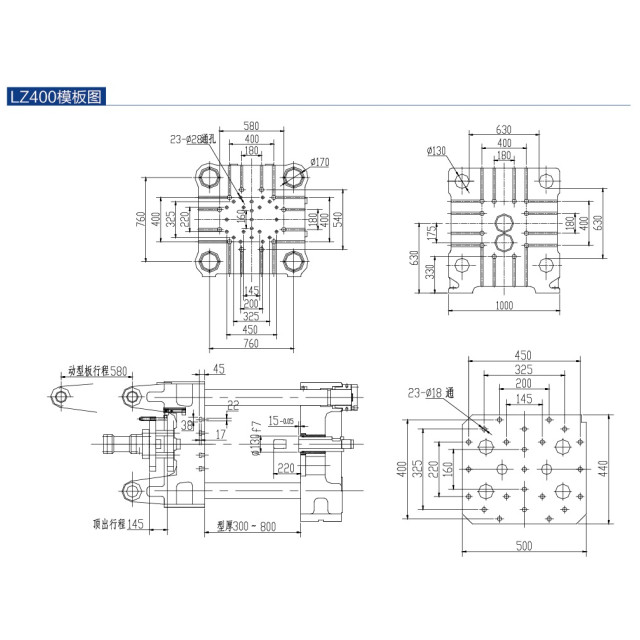

LZ 400 Ton PLC Horizontal High Pressure Die Cast Machine Molding Plate Specification:

400 Ton PLC Horizontal High Pressure Die Cast Machine Molding Plate Specification

Servo driven die casting machine

Servo driven system is an advisable choice for die casting machine factory. It features:

  1. Energy saving

  2. Rapid response and improved efficiency

  3. Stable pressure and precision

  4. High repetition accuracy

  5. High speed and large lifting flow

  6. Connection mode to improve heat dissipation performance

servo die casting machine

Cold Chamber Die Casting Machine Auxiliary Machines:

Auxiliary machines used to save labor or reach automatic die cast process.

  1. Aluminum melting furnace

    melting furance for cold chamber die casting machine

  2. Automatic ladling machine

    auto ladling machine

  3. Spraying Machine

    auto spraying machine

  4. Auto part off machine (Die casting parts pick-up machine / Extractor)

    auto part off machine Extractor

    Automatic aluminum die casting production line working video:

    https://www.youtube.com/shorts/npYbgva3NK8






Technical information and prices of 400Ton PLC Horizontal High Pressure Die Cast Machine, Automatic ladling machine, Auto Spraying machine, Auto die cast parts pick-up machine and melting furnace, Please email: cnkylt@aliyun.com
