|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Installation||Machine Type:||Semi Automatic|

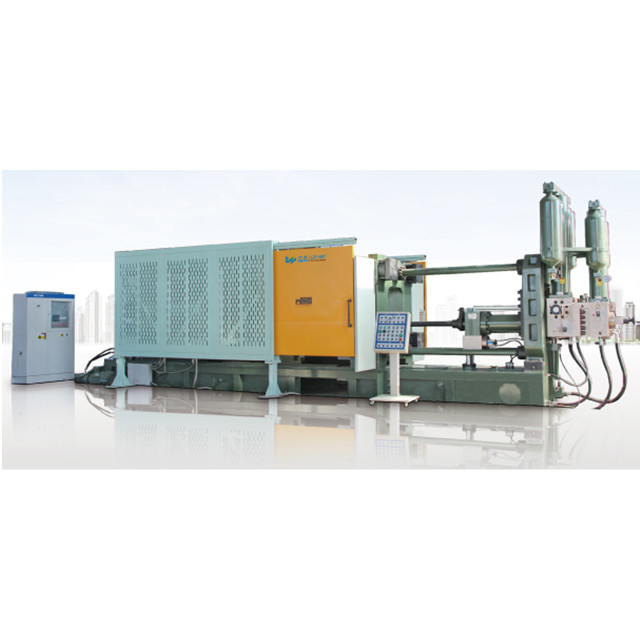

LZ11000KN High Pressure Die casting machine is large scale heavy duty machine type. Works with melting furnace, auto ladling robot, sprayer, die cast part pick-up robot to reach auotmatic die cast process. Email: email@example.com
|2||Inner space between tie bars(H*V)||mm||1030×1030|
|8||Injection position(center is "0",down is "-")||mm||0,-150,-300|
|9||Dia. of shot sleeve||mm||90,100,110,120,130|
|10||Dia.of Injection chamber flange||mm||240f7|
|11||Over height of flange||mm||20-0.05|
|12||Dosage of fluid metal pershot||kg||21.1(Al.)|
|16||Oil tank capacity||L||1600|
(Remark: 1.The die casting machine supplier keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. )
Heavy duty die casting process must work with auotmatically. The use of Automation equipment makes the die casting process full automatically.
The whole automatic die casting unit involve:Melting furance, Auto lading robot, Die casting machine, Auto sprayer, Extractor.
Die casting machine PLC control the whole process. Automatic ladler pour molten aluminum metal alloy from melting pot to die casting machine cold chamber. Then, be inject to mold cavities to got die-cast parts. Auto extractor pick-up casting part from die tool, put them on conveyor. The auto sprayer cooling and lubricating the mold cavity. And, to start then next die casting process.
Provide pre-sales consultation such as investment budget and plant planning, so as to make the customer's plant design reasonable, standardized and save costs.
Continuous grounding resistance test
Injection speed test
Clamping force test
Electric control system test
Machine appearance inspection
Full load test for more than 72 hours
By guiding customers to install the water and electricity of die casting machines, adjusting new machines. Training customers' technicians and operators. The machine placement is standardized and reasonable. Enable relevant personnel to be familiar with the machine operation and maintance.
Provide FREE standard spare parts together with machine.
Install die casting machine.
Trainning Die casting operator.
Any questions be replied by email, video, photos within 24hr.
Engineer guide your operater to work and adjust machine by video on line.
Quality guarantee period: 12 months after machine put into operation.
If the equipment fails during the guarantee peirod, the manufacturer shall repair and replace accessories free of charge.
Servo driven system is an advisable choice for die casting machine factory. It features:
Rapid response and improved efficiency
Stable pressure and precision
High repetition accuracy
High speed and large lifting flow
Connection mode to improve heat dissipation performance
