A Tunisian manufacturer of control cables. They are looking for the similar of the following vertical die casting machine.

control cables

That can use our 12T or 20T vertical die casting machines to produce control cables. The control cable one side terminal or both side terminals need be cast with zinc/ zamak alloy as drawing designed structure.

20T vertical hot chamber die casting machine

Customer vertical die casting machine requirement:

"Die-casting machine is mainly used for die-casting zinc alloy parts of ф1-ф3.5mm steel wire. The main features of the equipment are: stable and reliable operation, high accuracy, fast speed, the machine adopts 45 # steel quenching and tempering plate, machine hinge, matching Precisely processed by the machining center, the shape materials are cut by computer water cutting, the appearance is beautiful and durable, the main column is made of 40Cr steel after heat treatment, the surface is made of chrome plating, the hydraulic pump is made of Taiwan SML vane pump, low noise, long life It has the advantages of being hot. The heating adopts electric heating tube to be combined with the pot body for heating. The heating system adopts PLC to control the automatic voltage regulation module to adjust the temperature with advanced PID control mode. The temperature difference is small, the heat preservation is good, and the life is long. , Aviation, medical and other industries brake line, cable line, connecting line, sofa joystick, the necessary equipment for the control line (rod)!

Equipment composition

The machine is mainly composed of the following eight parts:

1. Melting system: from 9KW electric heating tube (total power of heating tube, PID control generally only takes more than half), then heat zinc alloy pot to 420 ℃,

2. Hydraulic system: composed of vane pump, oil circuit shunt plate, solenoid valve, etc.

3. Mould: Use the original Taiwan unified mould size!

4. Frame parts: mainly welded by 45 # steel plate and thickened square tube, and then derusted, and then subjected to high temperature tempering and shaping, in baking paint treatment, beautiful appearance and stain resistance;

5. Electric control device: It is mainly composed of touch screen, plc control Taiwan PID bidirectional thermostat, contactor, circuit breaker, Taiwan voltage adjustment module and other electrical components and cabinet body.

6. Cooling system: It consists of cooling pumps, pipes, joints, cooling boxes, etc. to cool the die-casting mold."

Our vertical die casting machine solution:

Vertical 12T & 20T die casting machines are widely used in many brake wires and control cables companies, they provide wires and cables for many famous car, bike, motorcycle factory. SHIMANO also use our machine to produce brake wires.

20T vertical die casting machine (side melting furnace type)

Photo shows SHIMANO special order vertical die castingmachine for brake wire/control cable zinc end making.

12T Vertical hot chamber die casting machine normally used to produce small zinc or lead alloy parts with insert parts which must be cast together with alloy.

  1. Brake wires of car and bike: one mold 6pcs

  2. metal shaped terminal pulling wires: one mold 2-6pcs

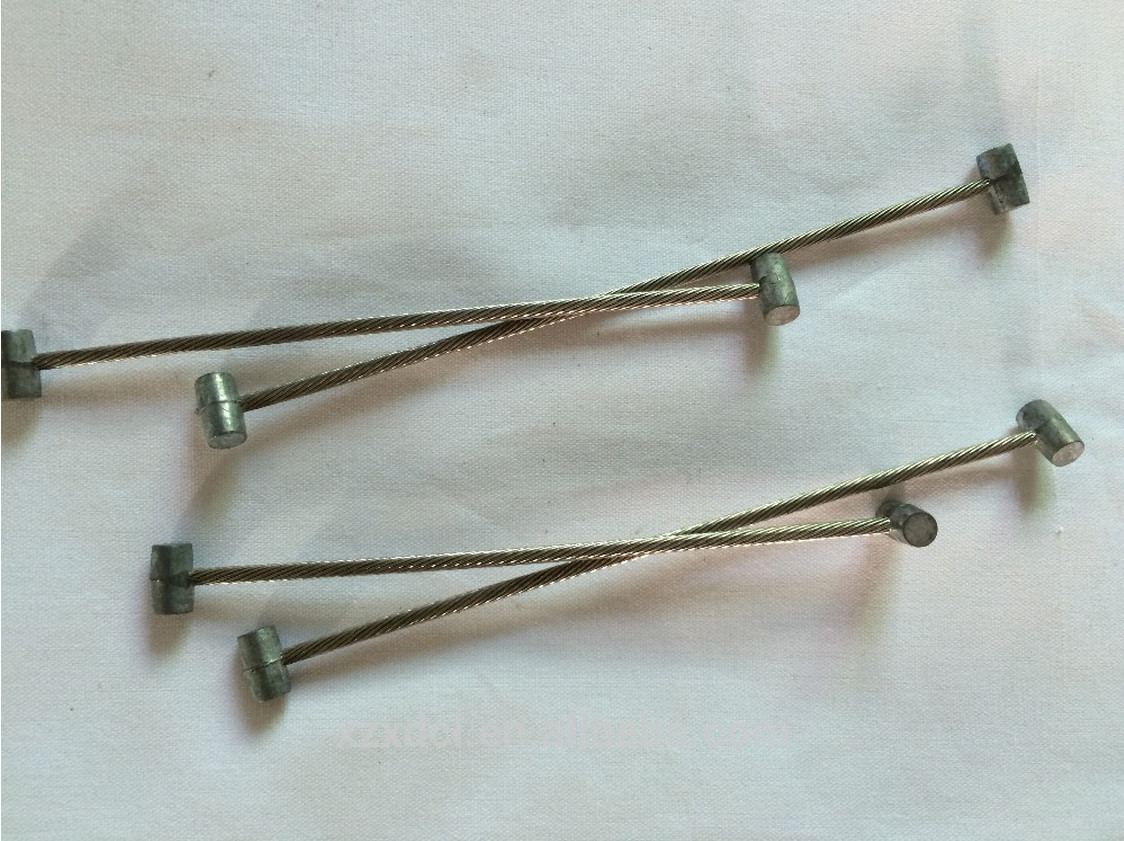

    brake wire with zinc end cast by vertical die casting machine

12T Vertical die casting machine specification:

120Kn high pressure vertical hot chamber die casting machine parameters:

Name Parameters Name Parameters
Locking Force 120Kn Motor Power 3.75Kw
Tie Bars Inner Space 190×220mm Accumulator Capacity 6.3L
Moving Platen Stroke 100mm Working Pressure 8Mpa
Profiling Thickness 110 – 190mm Electric Heating Tube Power 7.5Kw
Injection Pressure 14Kn Heater Power 1Kw
Injection Stroke 55mm Oil Tank Capacity 120L
Dosage of Fluid Metal per shot(Zn) 130g Machine Weight About 1000Kg
Crucible Effective Capacity(Zn) 70Kg Machine Size 120×90×210cm
Oil Pump 28L/min

Structure of 12T Vertical die casting machine

Vertical machine consists of machine body, mold clamping mechanism, injection system, cooling system, melting furance, electric system etc. It adopts hydraulic drive, electric operation, and has manual and automatic operation.

Melting furance is heated by electrical heated tube, so its operation is easy, and it has big adjustment range and wide application scope. The brand of hydraulic valve, time relay, general relay, AC contactor, microswitch of this machine is domestic and oversea famous, so it is running stable and performing excellence. It runs efficiently after adjustment. This machine is suitable for zinc alloy, lead alloy and tin alloy casting of hardware, electrical appliance, tool industry etc.

vertical die casting machines structure

Brake wire/cable making machine

To cast zinc terminal with wirerope. The manufacturing process need: die casting machine, die casting die, wireropes. Operator manual set wireropes on mold cavities. Normally 12T machine one time set 6 wireropes

The machine can be used to cast bike wire cable, motorcycle brake wire, car brake cable or wirerope with zinc end terminal.

brake wire cable

About 12T Vertical hot chamber die casting machine price, or die casting mould, please feel free to email us: We will choose suitable machine types, suggestions of mould design, provide free die casting samples.
