Export to Iran: Auto skin stapler nails feeding machine

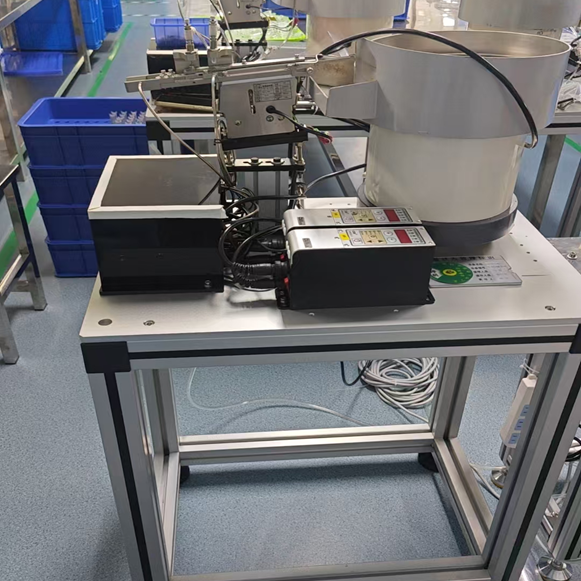

Auto skin stapler nails feeding machine is a key equipment in the production of skin staplers.

What Is Auto Skin Stapler Nails Feeding Machine?

The automatic feeding machine for skin stapler nails is a machine that automatically arranges and feeds stapler nails into the nail compartment box. Its production greatly improves the filling efficiency and quality of skin stapler nails.

The Intruction of Auto Skin Stapler Nails Feeding Machine

- Machine name:

Automatic feeding machine for skin stapler nails

- Equipment Information:

1. Equipment specifications: 620*400*310

2. Air Pressure: 0.5±0.1Mpa

3. Equipment power: ≤1.5KW

4. Power requirements: single-phase AC 220V 50Hz

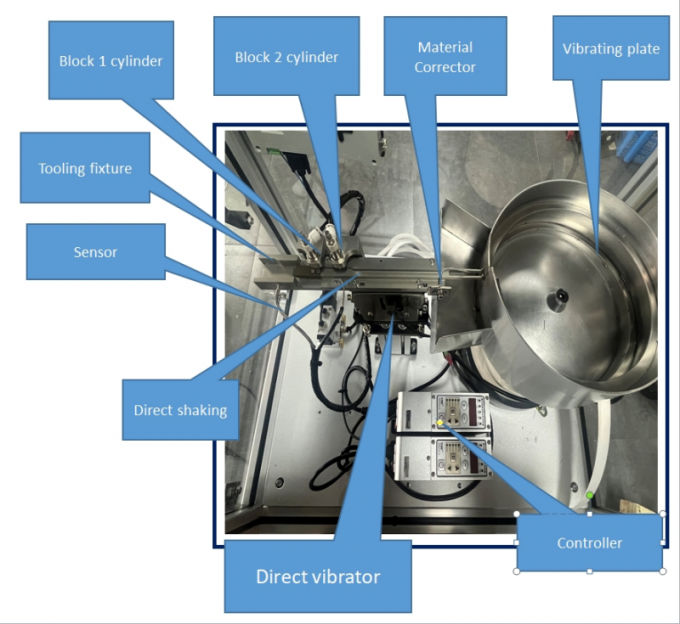

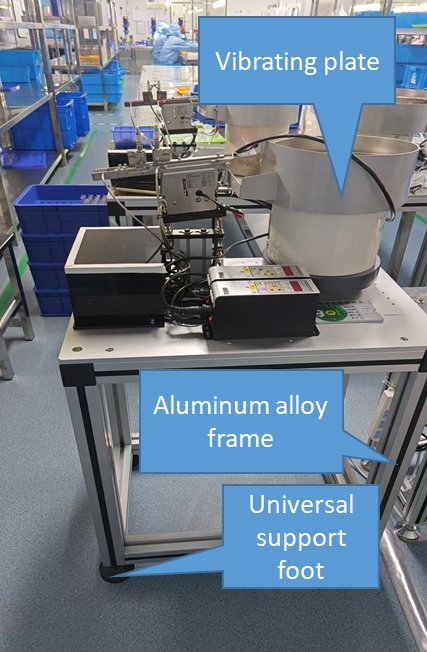

What Is The Structure of Auto Skin Stapler Nails Feeding Machine?

- Auto skin stapler nails feeding machine insturction:

The automatic feeding machine of skin stapler nails adopts vibrating plate feeding, corrects the material through the corrector, and the direct vibration transportation, and the cylinder blocks the transportation of the finished product. The production speed is fast, stable and quick to get started.

How does the auto skin stapler nails feeding machine work?

The auto skin stapler nails feeding machine working process:

The operator puts the nail into the vibrating plate first, then touch screen starts. The vibrating plate starts to work to transport the nails to the feeding station, corrects the nails through the corrector, and transports them to the direct vibrator after correction. The No. 2 stop nail cylinder(Block 2 cylinder) is lifted, and the nails are sent to the No. 1 stop nail cylinder (Block 1 cylinder) position. A sensor used to identify whether the sutural nail box is put into the tooling fixture or not. When the sutural nail box is put into the tooling fixture, the No. 2 stop nail cylinder falls. The No. 1 stop nail cylinder is lifted to transport the nails to the sutural nail box, and the fed nails box is taken away after the action is completed. When there is no sutural nails box in the fixture, the No. 1 stop nail cylinder presses down, and the No. 2 stop nail cylinder lifts, and the nails are transported to the position of the No. 1 stop nail cylinder. And then the sutural nails box is put into the fixture to start another nails feed cycle, and so on repeatedly.

The Auto skin stapler nails feeing machine working process video:

Main Core Components of Auto Skin Stapler Nails Feeding Machine

- Key spare parts and brand:

1. Air cylinder brand：SMC (QTY: 2PCS)

2. Fiber optic brand: Panasonic (QTY: 2PCS)

3. Direct shaking : Independent R&D (QTY:1PCS)

4. Vibrating plate: Independent R&D (QTY:1PCS)

More information of full set of skin stapler plastic injection molds, steel parts and assembling machine, please contact us: cnkylt@aliyun.com
