sale 400 Ton PLC Horizontal High Pressure Die Cast Machine

April 23, 2022

LZ4000KN High Pressure PLC Die Cast Machine factory. Over 35 years experience of the die casting machine design and manufacturing.

Usage: manufacturing Aluminum, Magnesium, Zinc, Copper alloy die casting parts. Email: cnkylt@aliyun.com

400 Ton PLC Horizontal High Pressure Die Cast Machine Specification (LZ400T)

No.	ITEM	UNIT	LZ400
1	Clamping Force	KN	4000
2	Inner space between tie bars(H*V)	mm	630×630
3	Die Stroke	mm	580
4	Die Thickness	mm	300~800
5	Ejection Stroke	mm	145
6	Ejection Force	KN	190
7	Injeciton Force	KN	160~400
8	Injection position(center is "0",down is "-")	mm	0,-175
9	Dia. of shot sleeve	mm	60,70,80
10	Dia.of Injection chamber flange	mm	130
11	Over height of flange	mm	15-0.05
12	Dosage of fluid metal pershot	kg	5(Al.)
13	Projected area	cm	283~1258
14	Injection pressure	Mpa	35~142
15	Dry cycle	s	10
16	Oil tank capacity	L	800
17	Motor power	KW	22
18	Machine sizes(LWH)	M	7.5×1.9×3.0

(Remark: 1.The die casting machine supplier keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. 2. Servo die casting machine can be choosed to save energy and cost. )

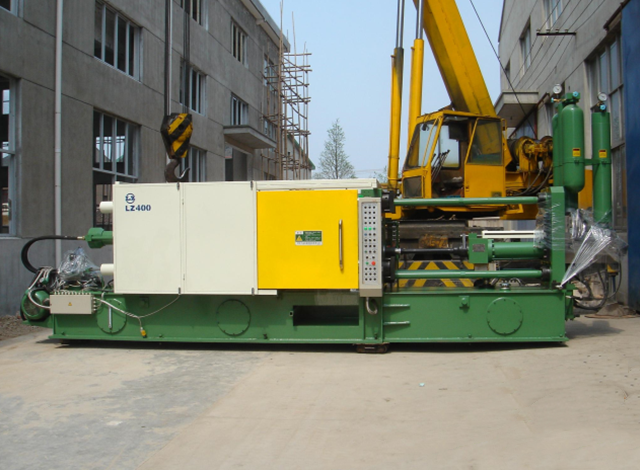

400 Ton PLC Horizontal High Pressure Die Cast Machine

Full automatic aluminum cold chamber die casting video:

Youtube: https://youtu.be/npYbgva3NK8

Manual die casting video:

Youtube: https://youtu.be/LCafa6yLESc

Die casting working process of cold chamber horizontal machine:

Die casting machine operator ladles the liquid Aluminum/Zinc/Copper alloy out from furnace, pure it into pressure casting chamber. Cold chamber die casting machine plunger inject the liquid metal alloy to pressure die with high pressure. Metal alloy solid, die open, the die casting parts be ejected out from mould cavities. A die casting injection process is finished, sprayer lubricates and cools the die cavites, mould close, and ready to start the next pressure die casting cycle.

LZ 400 Ton PLC Horizontal High Pressure Die Cast Machine Cement Ground Specification:

400 Ton PLC Horizontal High Pressure Die Cast Machine Cement Ground Specification

LZ 400 Ton PLC Horizontal High Pressure Die Cast Machine Molding Plate Specification:

400 Ton PLC Horizontal High Pressure Die Cast Machine Molding Plate Specification

Servo driven die casting machine

Servo driven system is an advisable choice for die casting machine factory. It features:

Energy saving
Rapid response and improved efficiency
Stable pressure and precision
High repetition accuracy
High speed and large lifting flow
Connection mode to improve heat dissipation performance

servo die casting machine

Cold Chamber Die Casting Machine Auxiliary Machines:

Auxiliary machines used to save labor or reach automatic die cast process.

Aluminum melting furnace
Automatic ladling machine
Spraying Machine
Auto part off machine (Die casting parts pick-up machine / Extractor)

Automatic aluminum die casting production line working video:

https://www.youtube.com/shorts/npYbgva3NK8

Technical information and prices of 400Ton PLC Horizontal High Pressure Die Cast Machine, Automatic ladling machine, Auto Spraying machine, Auto die cast parts pick-up machine and melting furnace, Please email: cnkylt@aliyun.com
